Charnwood B250 10” Premium Woodworking Bandsaw

£379.00

SKU: B250 10'' Premium Woodworking Bandsaw Categories: , , ,

Charnwood B250 Bandsaw

FREE Shipping to Mainland UK

Premium Grade 10” Woodworking Bandsaw.

Huge 6” Cutting Depth Capacity

10” Cutting Width (Throat)

Supplied with High Quality British Made Blade

Precision Ground Cast Iron Work Table

Quick Action Lock On Rip Fence

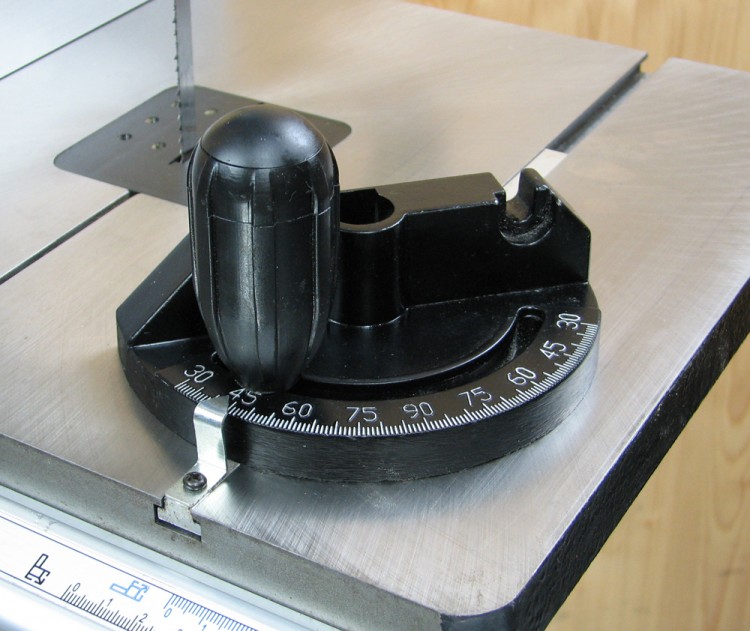

Crosscutting Mitre Guide Included

Quiet Induction Motor

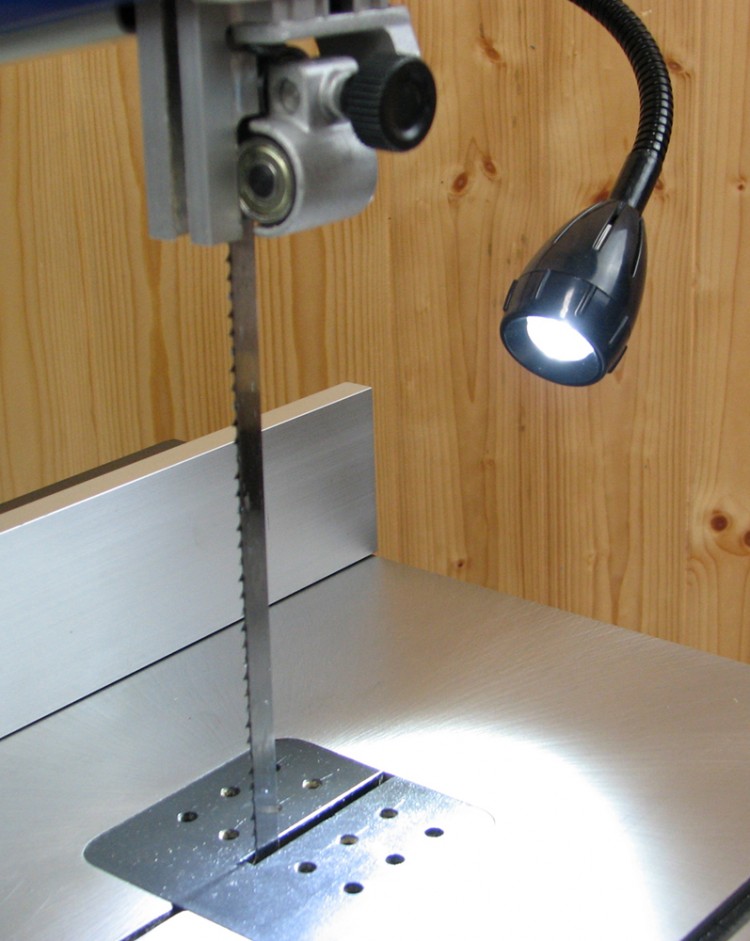

Mains Powered LED work Light

Integral Dust Collection Tray

Includes Floorstand

Primarily used for Woodworking

A compact floorstanding woodworking bandsaw with a massive cutting capacity, for a machine of this size and price, of 150mm (6″). The big capacity makes it an ideal choice for woodworkers who are short on space. The power is delivered by a quiet induction motor with a belt drive to the bandsaw wheel. The key to straight and accurate cutting on a bandsaw is to have a good set of blade guides. The B250 has three sealed bearings on the blade guard. Two mounted side-on to the blade to control blade twist and keep it true. The rear bearing takes the thrust of the back of the blade allowing it to run freely. The same setup is then repeated beneath the table.

The cast iron table tilts from 90 degrees to 45 degrees and has a positive stop at both of those positions. Any angle in between can be read off the scale and locked in. For rip cuts the guide fence can be situated on either side of the blade, can be locked into position with a single press of the lever and has a clear marker to set against the metric scale. The fence itself can be fitted in two ways. When cutting thicker material the full face height of 60mm is used. When cutting thin and narrow strips the fence is fitted with the small face, against the blade to allow clearance around the guides.

The two doors are fitted with safety locks which cut power to the motor when the doors are open for blade changing or cleaning.

A dust extractor is always recommended when using a bandsaw. The dust collection outlet has 3 rings which allow it to accept 3 sizes of hose, 50mm, 75mm & 100mm diameter making it compatible with any type of extraction system. If extraction is not being used however, the bandsaw is fitted with an integral dust collection draw. Dust falling into the base of the machine will be collected here, allowing it to be quickly and easily emptied.

Supplied with 3/8” x 6tpi blade, rip fence, mitre fence, work light, floorstand, cable and plug.

This Bandsaw is fitted with a High Quality, British manufactured blade with precision ground teeth for incredible cutting results.

B250 Specification

Maximum cutting depth

150mm (6″)

Throat width

245mm (10″)

Max. cutting width with fence

105mm Left / 120mm Right

Table size

360mm x 320mm

Table Height

940mm

Table tilt

90-45 degrees

Mitre Guide T-Slot

8.5mm / 14mm

Cutting speeds

400 & 800m/min

Motor (induction)

375w (1/2hp)

Blade length

1826mm

Blade widths

6-12mm (1/4″ – 1/2″)

Dimensions (WxDxH)

670mm x 530mm x 1450mm

Weight

41Kg

Rating

Light Trade

Warranty

1 Year

The primary use of this bandsaw is for woodworking and the blade supplied is suitable for cutting both hard and soft woods. The blade supplied can also cut Non-ferrous metals, Plastic and Acrylic. It is possible to use this bandsaw for cutting other materials, but only with a suitable blade fitted.
