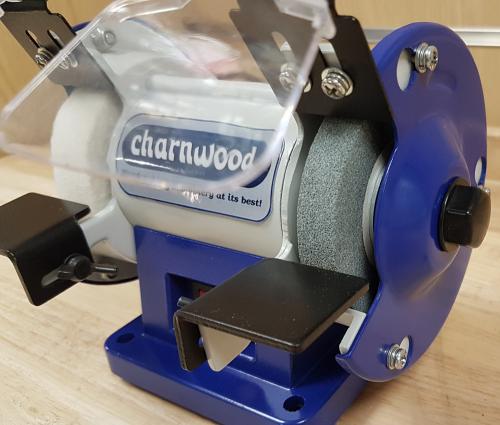

Charnwood BG3 Bench Grinder Polisher with Flexible Drive

Charnwood BG3 Bench Grinder Polisher with Flexible Drive

A compact and versatile mini bench grinder for model makers.

This is really a multi-purpose tool capable of carrying out grinding, polishing & sanding operations on small components.

One side is fitted with a grey grinding stone for sharpening (chisels, drill bits and tools), reshaping, deburring etc…

The other side is fitted with a soft polishing wheel, able to polish and smooth all kinds of materials, such as precious metals, non-ferrous metals, stainless steel, glass, porcelain, wood, rubber and plastic.

Some materials will require a suitable polishing compound to be used.

To add another level of versatility, we also include a power take off to fit a flexible rotary shaft.

The rotary shaft has a 3.2mm collet chuck (compatible with Dremel type tools) and we include a 100 piece accessory kit enabling a wide variety of applications such as engraving, carving, routing, cutting, sanding & polishing.

The grinder sits on 4 rubber feet to provide a stable platform. It can also be secured to a work bench using the 4 mounting points provided.

Supplied with spark guards, eye shields, tool rests, rotary shaft, 100 piece accessory kit, 1.75m cable and UK 3 pin plug.

BG3 Specification

Motor (Induction)            50w (0.06hp)

Voltage 220~240v, 50hz

Max. Continuous Run Time          30 minutes

No Load Speed 2850rpm

Spindle Diameter             12.7mm (1/2″)

Grinding Wheel 75mm (3″) x 20mm (3/4″)

Grinding Wheel Grit Size               80g

Polishing Wheel                75mm (3″) x 13mm (1/2″)

Flexible Rotary Shaft Length        1000mm

Flexible Rotary Shaft Speed         2850rpm

Flexible rotary Shaft Chuck           3.2mm

Assembled Dimensions (WxDxH)              170mm x 190mm x 150mm

Shipping Dimensions (WxDxH)   230mm x 300mm x 210mm

Weight 4kg

Assembly Time Required              5 Minutes

Rating   Hobby

Warranty             1 year
