Charnwood PT200 8″ X 5″ Planer Thicknesser

£349.94

    • 28.29 £

Description

Charnwood PT200 8″ X 5″ Planer Thicknesser

Free Shipping to Mainland UK

A compact and portable planer thicknesser.

8” Planing Capacity

8” x 5” Thicknessing Capacity

Aluminium Tables To Minimize Weight

Extruded Guide Fence For Accuracy

Tilting Fence With Twin Guides

Rubber Coated Feed Rollers

100mm Diameter Chip Extraction Outlet



Light enough to move off the bench when not in use and yet tough enough to produce 8″ x 5″ timber into flat and dimension-ed pieces.

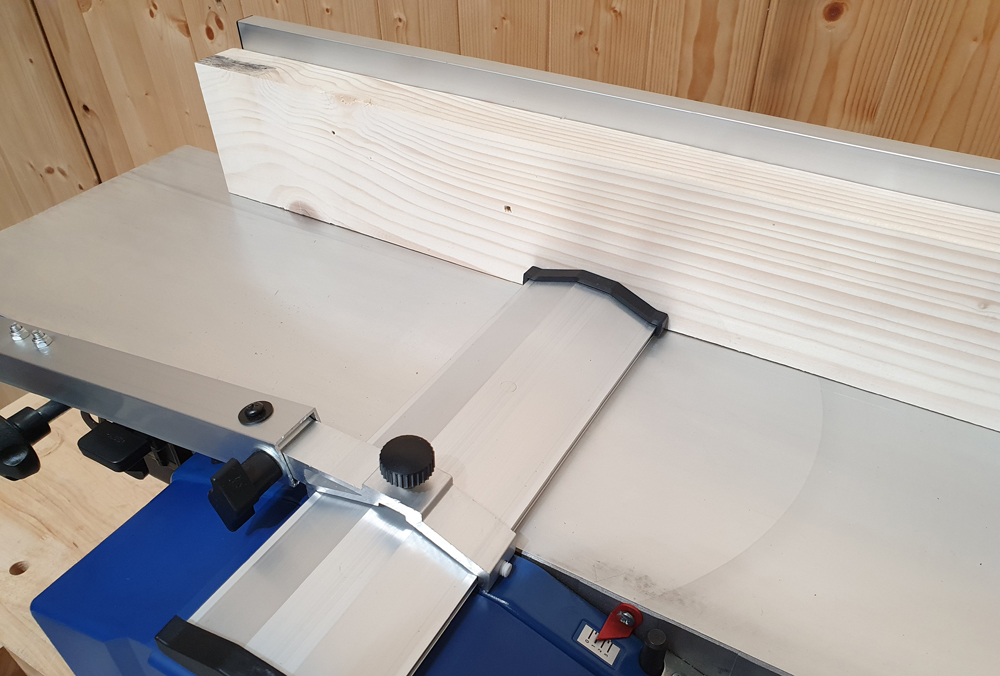

The planing beds are precision ground aluminium and the guide fence is a rigid aluminium extrusion which can be tilted and locked at any angle up to 45 degrees when required.

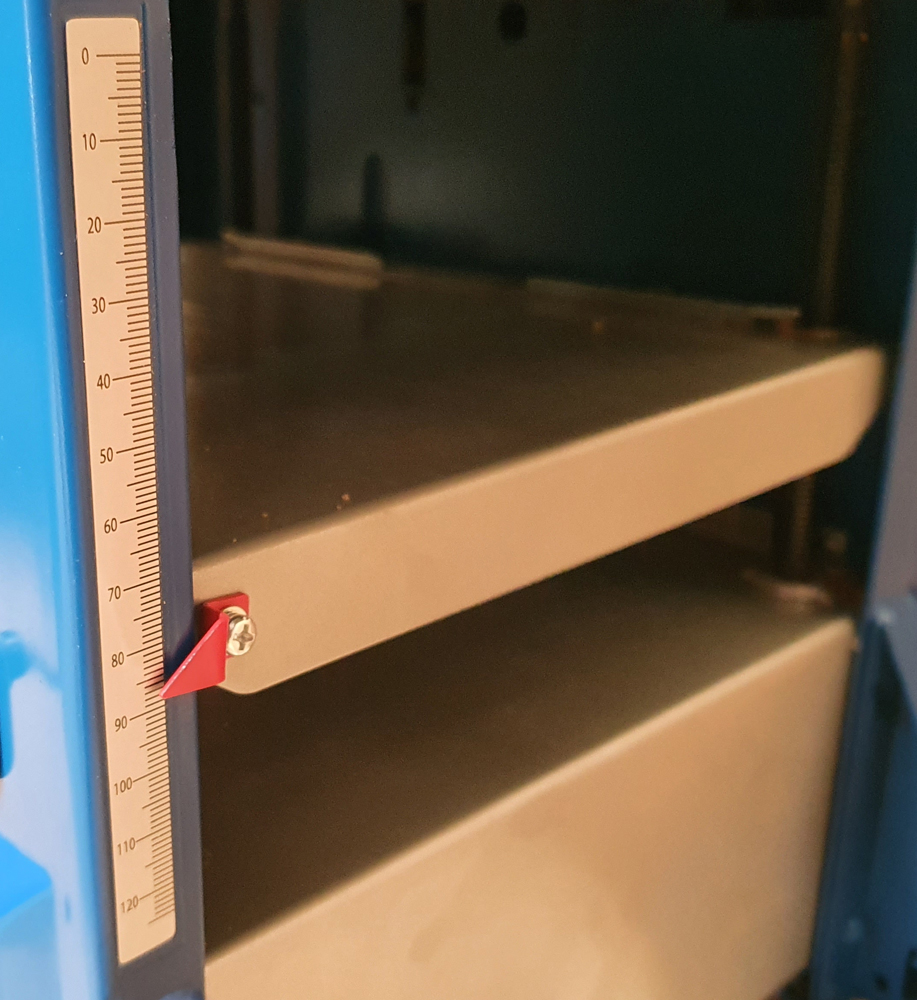

The steel thicknessing bed has an extension arm on the outfeed side and is supported in each corner by chain driven adjusting screws. Once the height is set, rubber coated feed rollers pass the timber through the high speed cutter block leaving a beautiful finish with no roller marks.

The redesigned dust hood now has a quick action clamp to allow faster removal when changing between Planing and thicknessing modes. The hood fits onto the thicknessing bed during planing operations and is then moved over the top when thicknessing. As a safety feature a location sensor detects that the dust hood has been correctly fitted before allowing the motor to run.

Supplied with re-grindable knives, 100mm diameter dust extraction outlet, blade setting tool, 4 adjustable rubber feet, 2.0m power cable and UK 3 pin plug.

Charnwood PT200 Specification

Surfacing width 204mm (8″)

Length of surfacing tables             740mm

Maximum planing depth of cut   2mm

Fence tilt              90 – 45

Table height       360mm

Thicknessing capacity     5 – 125mm (1/4″ – 5″)

Length of thicknessing table        270mm

Feed speed        8m/min

Maximum depth of cut  2mm

Cutterblock speed           9000rpm

Number of knives            2

Motor (carbon brush)    1500w (2hp), 240v

Dimensions (WxDxH)     830mm x 400mm x 460mm

Weight 28kg

Assembly Time Required              5 Minutes

Rating   Hobby

Product Guarantee         5 Years

It is essential to use dust extraction with a planer thicknesser. The extractor removes all the dust and chips which will otherwise build up, causing a blockage and eventually damage to the machine. Using an extractor also increases the life of the knives.



Additional information

Weight 0.00 kg
Dimensions 83.00 × 40.00000000 × 46.00000000 cm
