Charnwood PT250 10″ X 5″ Planer Thicknesser

£419.95

    • 28.29 £

Description

Charnwood PT250 10″ X 5″ Planer Thicknesser

Free Shipping to Mainland UK

Large capacity, bench top planer thicknesser.

10” Planing Capacity

10” x 5” Thicknessing Capacity

Aluminium Tables To Minimise Weight

Extruded Guide Fence For Accuracy

Tilting Fence With Twin Guides

Rubber Coated Feed Rollers

100mm Diameter Chip Extraction Outlet



The largest in our bench top machines, still light enough to move off the bench when not in use. The capacity is increased to allow 10″ x 5″ timber to be accurately dimensioned.

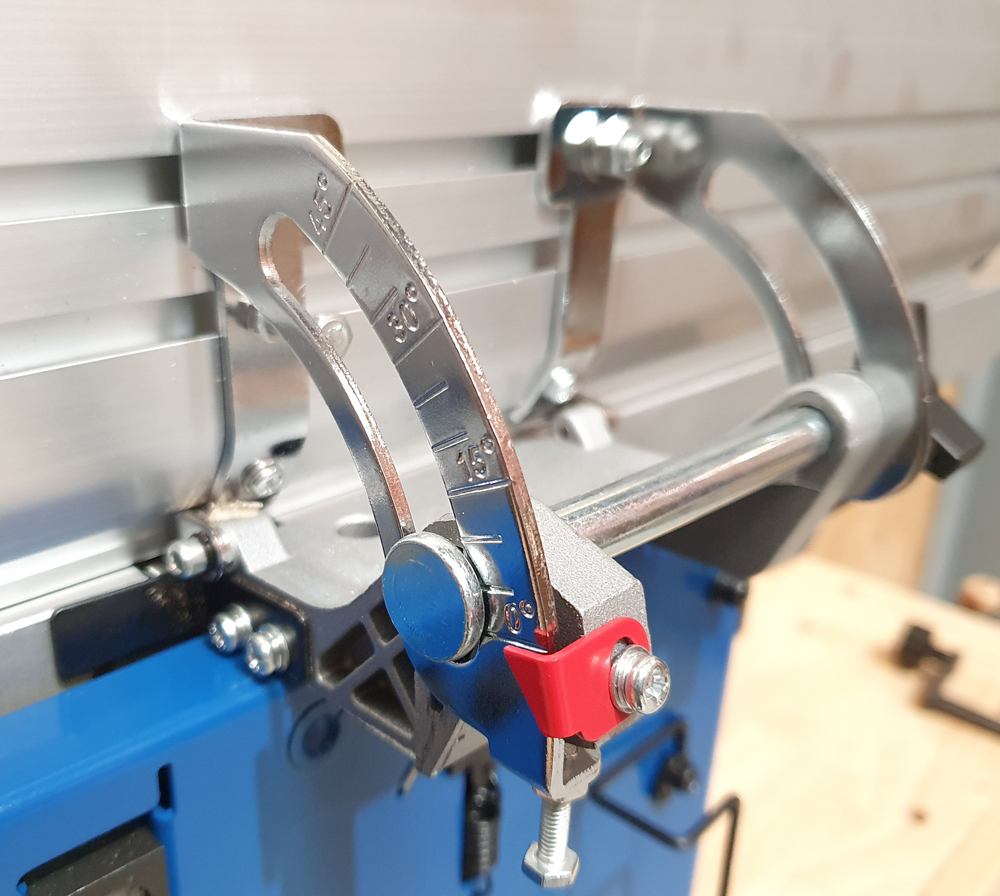

The planing beds are precision ground aluminium and the guide fence is a rigid aluminium extrusion which can be tilted and locked at any angle up to 45 degrees when required.

The steel thicknessing bed has an extension arm on the outfeed side and is supported in each corner by chain driven adjusting screws. Once the height is set, rubber coated feed rollers pass the timber through the high speed cutter block leaving a beautiful finish with no roller marks.

The redesigned dust hood now has a quick action clamp to allow faster removal when changing between Planing and thicknessing modes. The hood fits?onto the?thicknessing bed during planing operations and is then moved over the top when thicknessing. As a safety feature a location sensor detects that the dust hood has been correctly fitted before allowing the motor to run.

Supplied with re-grindable knives, 100mm diameter dust extraction outlet, blade setting tool, 4 adjustable rubber feet, 2.0m power cable and UK 3 pin plug.

Charnwood PT250 Specification



Surfacing width 252mm (10″)

Length of surfacing tables             915mm

Maximum planing depth of cut   2mm

Fence tilt              90 – 45

Table height       360mm

Thicknessing capacity     5 – 125mm (1/4″ – 5″)

Length of thicknessing table        270mm

Feed speed        8m/min

Maximum depth of cut  2mm

Cutterblock speed           9000rpm

Number of knives            2

Motor (carbon brush)    1500w (2hp), 240v

Dimensions (WxDxH)     945mm x 470mm x 480mm

Weight 30kg

Assembly Time Required              5 Minutes

Rating   Hobby

Product Guarantee         5 Years

It is essential to use dust extraction with a planer thicknesser. The extractor removes all the dust and chips which will otherwise build up, causing a blockage and eventually damage to the machine. Using an extractor also increases the life of the knives.
