Charnwood W625 Sawbench

£289.00

SKU: Charnwood W625 Sawbench Categories: , ,

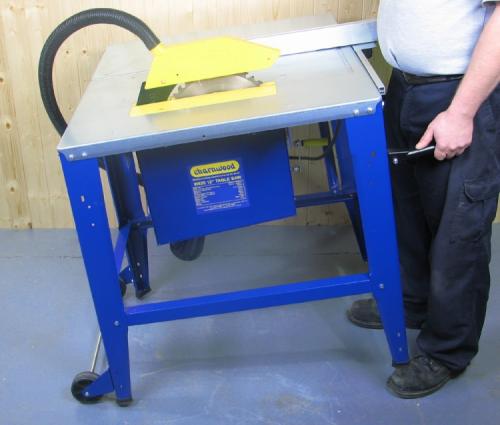

Charnwood W625 Contractors Sawbench

A free standing table saw, often referred to as a site or contractors saw, with a big cutting capacity and a large table surface area for panel work.

  • 1600W Quiet Induction Motor

  • Quick Action Rip Fence

  • Rear Extension Table Included

  • Floorstand Included

  • Dust Extraction Kit Included

  • Wheel Kit Included

  • Electronic Motor Brake

Powered by a quiet induction motor, the 12” diameter TCT blade is capable of cutting timber over 3″ deep.

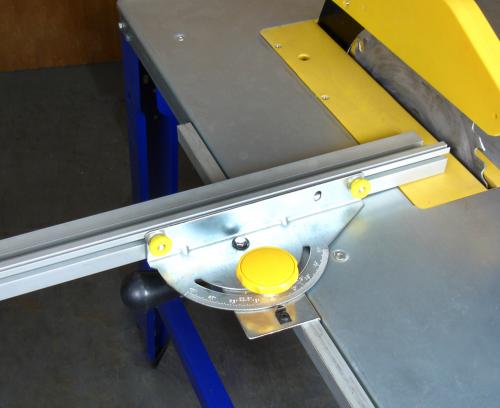

The rip fence is rapidly adjusted thanks to the quick release mechanism and is solid when locked thanks to the extrusion which runs along the front of the table.

The fence can also be used as a crosscut fence, by mounting it on the right hand side. The angle of the fence can be adjusted for cutting mitres.

For anyone wanting to connect the saw to an extractor the dust kit provided will collect from above and below the blade from a single outlet.

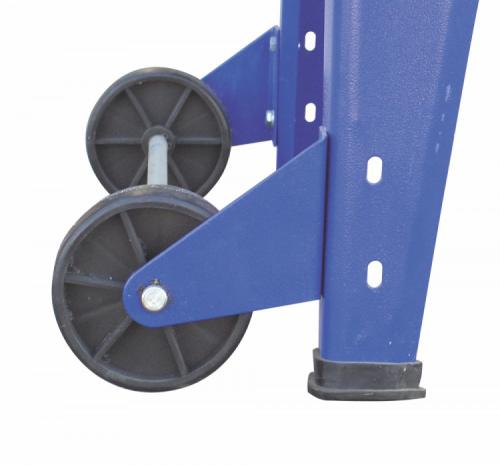

Because of the large size of this machine, and the tendency to use it for panel work, it is often moved around the workshop. We provide lifting handles and wheels so that one person can easily move it. The working table surface is galvanised steel and the other metalwork is a durable powder coated finish to protect it through many years of work.

Supplied with 24 tooth TCT blade, crosscut mitre fence, dust extraction kit with 100mm outlet, lifting handle and wheel kit, 2.0m power cable and UK 3 pin plug.

It is highly recommended that a dust extractor is used at all times with this saw to prevent the harmful build up of dust and chips.

Specification

Table Size (W x D)

550mm x 1600mm

Maximum ripping width

290mm (11.4″)

Blade Tilt

90-45 degrees

Cutting Depth at 90

85mm (3.3″)

Cutting Depth at 45

55mm (2″)

Blade Diameter

300mm (12″)

Blade Bore

30mm

Blade Width (Kerf)

3.0mm

Table Height

800mm

Motor (Induction) Braked

1600w (2hp)

Motor Speed

3000rpm

Minimum Blade Width (Kerf)

2.8mm

Overall Dimensions (WxDxH)

850mm x 1700mm x 1050mm

Weight

57Kg

Rating

Trade

Warranty

1 Year

Options
W625P:
Package Deal which includes:

An additional right hand side extension table, 400mm x 800mm
A bearing guided sliding carriage table with a large fence adjustable 90 to 45 degrees, with quick action angle setting and a flip over length stop.

W625PSF: Includes right hand side extension table and sliding carriage, plus the precision saw fence upgrade which allows more accurate rip cuts of up to 700mm.

Additional information

Weight 0.00 kg
Dimensions 1690.00000000 × 600.00000000 × 1050.00000000 cm
Blade Dia/Bore

Blade Tilt

Max Cut @ 90 Degree

Max Cut @ 45 Degrees

Max Rip With Extension

Table Size

Weight

Power

Blade Speed

Table Height

Extraction Outlet
