Charnwood W813 Floorstanding Lathe

£499.00

2 in stock (can be backordered)

Charnwood W813 Floorstanding Lathe

FREE Shipping to Mainland UK

Package Deals Including Chucks & Chisels also Available, Please call for Details…

An excellent all rounder which makes a very good first lathe. Although the overall design has not changed for many years we have recently given this lathe a make over and uprated many of the components.

550w (3/4hp) Induction Motor

Toolrest Design

Easy-Operation Camlock Design

Accessories Holder

12″ Bowl Turning Capacity

36″ Spindle Turning Capacity

Mechanical Variable Speed

Digital RPM Speed Display

Hollow Head & Tail Stocks

Rotating Headstock for 18″ Bowls

Sturdy Floorstand with Shelf Included

Cast iron construction, precision machining and great value for money are the key features of this woodturning lathe.

This new version has an upgraded, more powerful, induction motor and a digital speed readout to accurately display the rpm speed of the spindle.

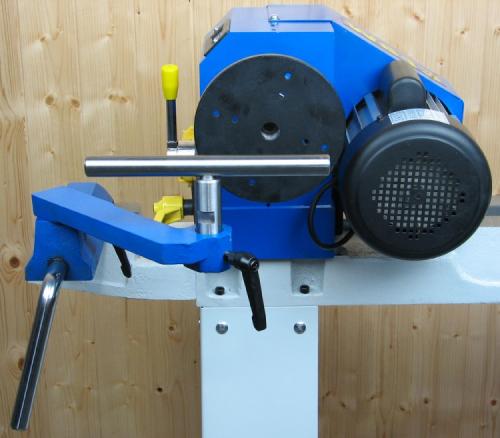

Spindles of up to 12″ diameter and 36″ in length can be precisely turned over the bed using the cam-lock sliding toolrest. The sliding tail stock also uses a cam-lock for quick adjustments. The rotating headstock design allows for larger diameter work, such as bowl turning, of up to 18″ in diameter, to be turned over the front of the machine. Obtaining the correct speed for cutting is no problem with the variable speed controller with 10 locator stops, which operates at the turn of a lever. When using the headstock rotated to the front, the extendable toolrest can be positioned on the left hand side using the extension bed supplied.

Supplied with hollow headstock and tailstock suitable for long hole boring, floorstand, NVR switch, 225mm long toolrest with 25mm shank, 4 prong drive centre 2MT, revolving tail centre 2MT, 6″ diameter faceplate, knock out bar, cable and plug.

The optional wheelbase is an excellent addition for anybody who needs to move this lathe around the workshop.



Specification

Distance between centres                                  900mm (36″)

Distance over bed                                                 310mm (12″)

Motor (Induction)                                                550w (3/4hp)

Speed ranges                                                          10 (500 – 2000RPM)

Spindle thread size                                              M33 x 3.5

Spindle tapers                                                       2MT

Dimensions (WxDxH)                                        1700mm x 450mm x 1120mm

Weight                                                                      82kg

Rating                                                                       Hobby

Warranty                                                                 1 Year
