Laguna Fusion 3 Tablesaw

Laguna Fusion 3 – 3hp Tablesaw

Now in Stock

FREE Shipping to Mainland UK

The Laguna F3 Fusion Tablesaw is the next step up from the F2 Model, making it an even more robust machine with greater quality and power. The F3 is everything you could want in an industrial tablesaw and more!

Featured Upgrades

Large 3HP Motor on 220V

Large Industrial Cabinet

Solid Cast Iron Trunnion

Electromagnetic Contactor

Professional Arbor Controls

Welcome to Laguna’s superb high quality cast iron 10″ Fusion 2 tablesaw. We are sure the newly redesigned Fusion line up will not only impress but exceed your expectations.

The first thing that will catch your eye is the large precision ground mirror finished table-top which allows excellent work piece support. For Europe we have added a 500mm rear take off table for even more support, if not in use this can be easily taken off and stored flat. The classic ‘T Style’ rip fence which is exceptionally smooth moving and rock solid locking is a pleasure to use with an easy cam lock handle and will guarantee accurate cuts up to the 36″ standard capacity.

Laguna have also completely redesigned the arbor controls so that the rise/fall/tilt handles give a lovely buttery smooth blade movement courtesy of a 2:1 ratio gear box. Dust extraction is a crucial part of any machine for operator safety and machine longevity and for Europe we have specified a crown guard hose in conjunction with Laguna’s newly designed interior shrouded dust collection.

The heart of this saw is the powerful 1 3/4Hp braked motor which is mounted onto the powder coated cabinet base via solid aluminium trunnions. This mounting method ensures the table top is left unstressed by the motor weight and guarantees a perfectly flat working surface. The substantial professional ‘zero clearance’ throat plate is suitable for all blade angles and is supplied as standard, it has fine adjustment grub screws to precisely line up to the table surface and is also easy to remove.

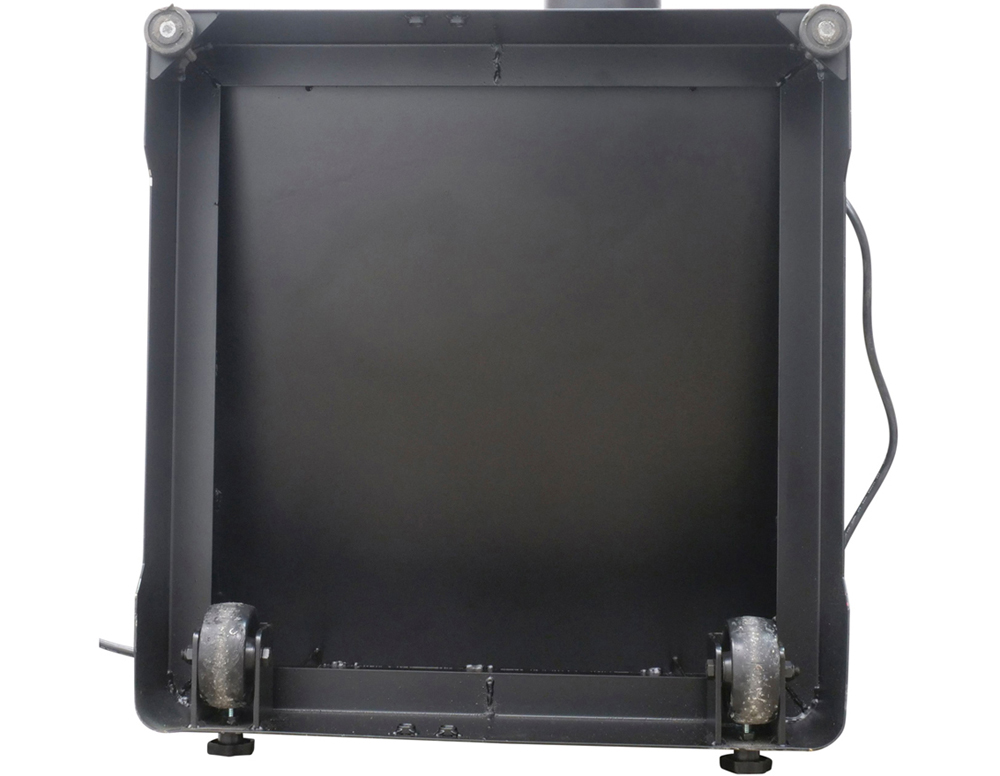

For further convenience a wheel kit is integrated within the base and there are storage points for all the accessories. Supplied with a high quality mitre fence that is hyper accurate when travelling in the T slots. There is a 250mm 40T blade supplied as standard. Finally, the quick release riving knife makes blade changing easier and safer.

*Please note that current images and videos feature the USA model and that UK switches and crown guards differ for CE regulations. We will update with CE spec images soon.

Accessories

52″ Rip extension

Code : FUSION52

Specifications

Phase                                                     1PH

Voltage                                                  230V

Motor Type                                          TEFC Capacitor Start AC Induction

Horsepower                                         2200W (3Hp)

Motor Speed                                        3450 RPM

Cycle                                                     50 Hz

Full Load Amperage                          14.5 Amp.

Start Capacitor                                   400 µF-U

Run Capacitor                                    50 µF-U

Switch Type                                         Magnetic with Overload Protection

Power Transfer                                   Single V-Ribbed Band 142J FJ

Power Cord                                         2M H07RNF

Power Plug Included                        CEE 7/7 Plug

Breaker Recommendation               30 Amp

General

Foot Print (LxW)                                503 mm x 520 mm

Overall Dimensions (LxWxH)         1663 mm x 1652 mm x 1080.9 mm

Shipping Dimensions (LxWxH)      870 mm x 1190 mm x 1085 mm

Net Weight (No Accessories)           157 Kgs

Shipping Weight                                 202 Kgs

Dust Collection: Outlet Dia.             101.6 mm (4″)

Dust Collection: M3 Min. Req.        934 M3 / H

Sound Emissions                                N/A

Tablesaw Specs

Blade Diameter / Bore                      250 mm / 30 mm

Arbor Diameter                                  5/8″

Arbor Speed                                        3800 RPM

Rip Capacity, with Fence                  914.4 mm Right / 431.8 mm Left (1320.8 mm Optional)

Maximum Depth of Cut @ 90°       79 mm

Maximum Depth of Cut @ 45°        56 mm

Blade Tilt                                             45° Left, 3° Arbor Adjustment

Mitre Slot                                             19 mm to 23 mm T Slot (3/4″ to 1″ T)

Fence Type                                           Sliding Cam Action Fully Adjustable

Fence Face Dimensions (LxWxh)   670 mm x 80 mm x 17 mm

Throat Plate Type                               Professional Square Zero Clearance

Throat Plate Dimensions (LxWxh) 372 mm x 104.5 mm x 13 mm

Floor to Table Height                         887 mm
