Laguna P Flux 3 Cyclone Dust Extractor

FREE Shipping to Mainland UK!

New 2022 versions coming in April!

The Laguna P Flux 3 cyclone dust extractor is one of the most radical designs to ever hit the market.

HEPA class canister filtration and many unique innovative features, make these high-end cyclones the market leaders.

A perfect choice for those looking to minimise workshop dust to the very lowest level.

All Laguna cyclones have:

• Remote start & stop

• Riveted steel fan with backward curved fin design

• Smart lift collection drum

• Inlet with splitter and rubber blanking cap

• Portability with 4 swivel castors

P Flux series innovative features:

• HEPA Filtration down to 0.4micron

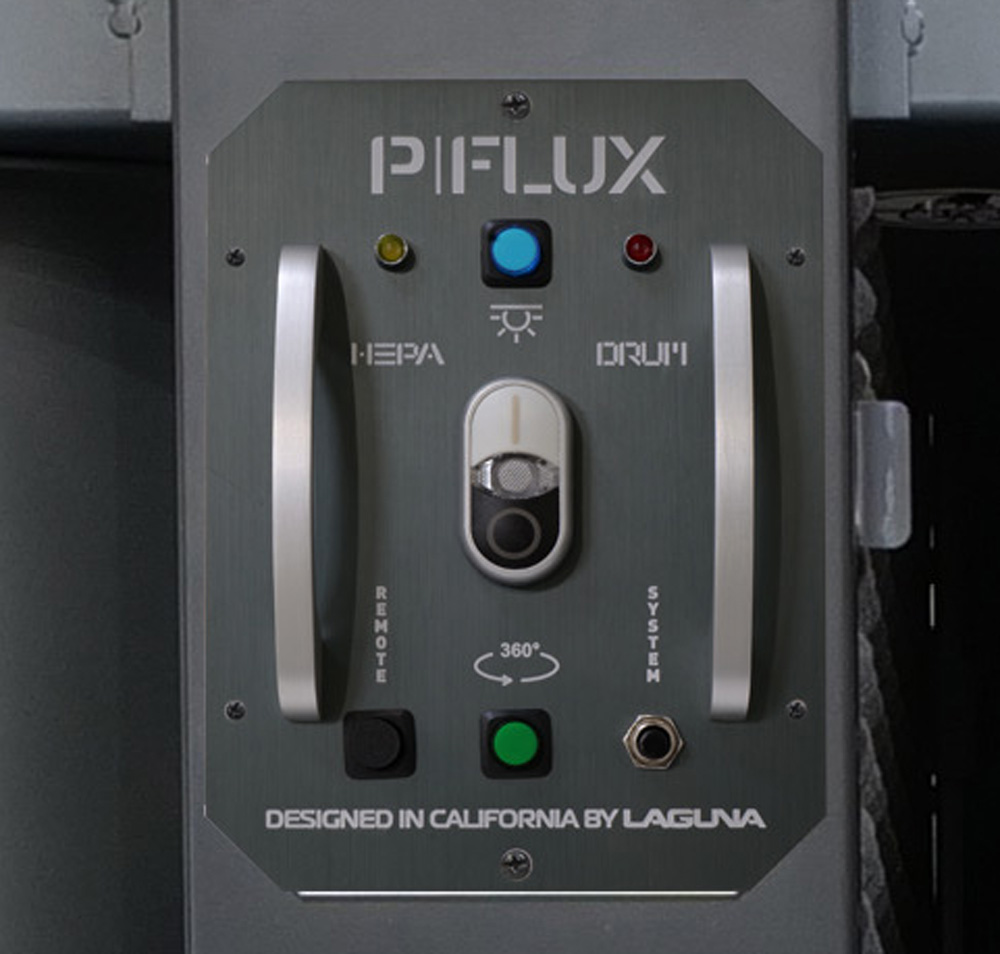

• LED warning light when collection drum is full and when HEPA filter needs cleaning

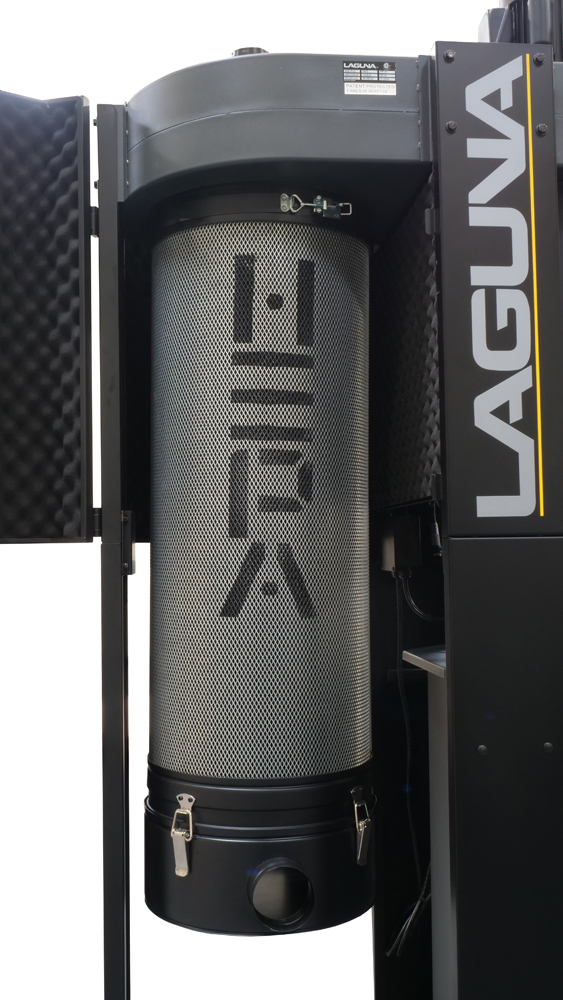

• Swing away doors with acoustic foam to lower the noise level

• Semi automatic emptying of canister dust

The octagonal collection drum is mounted on a set of castors. When locking the collection drum into position, using the quick action lever, a negative pressure hose is automatically connected which has the action of holding down the plastic bag inside the drum. These smart features mean faster drum emptying compared to the traditional weighted bag method.

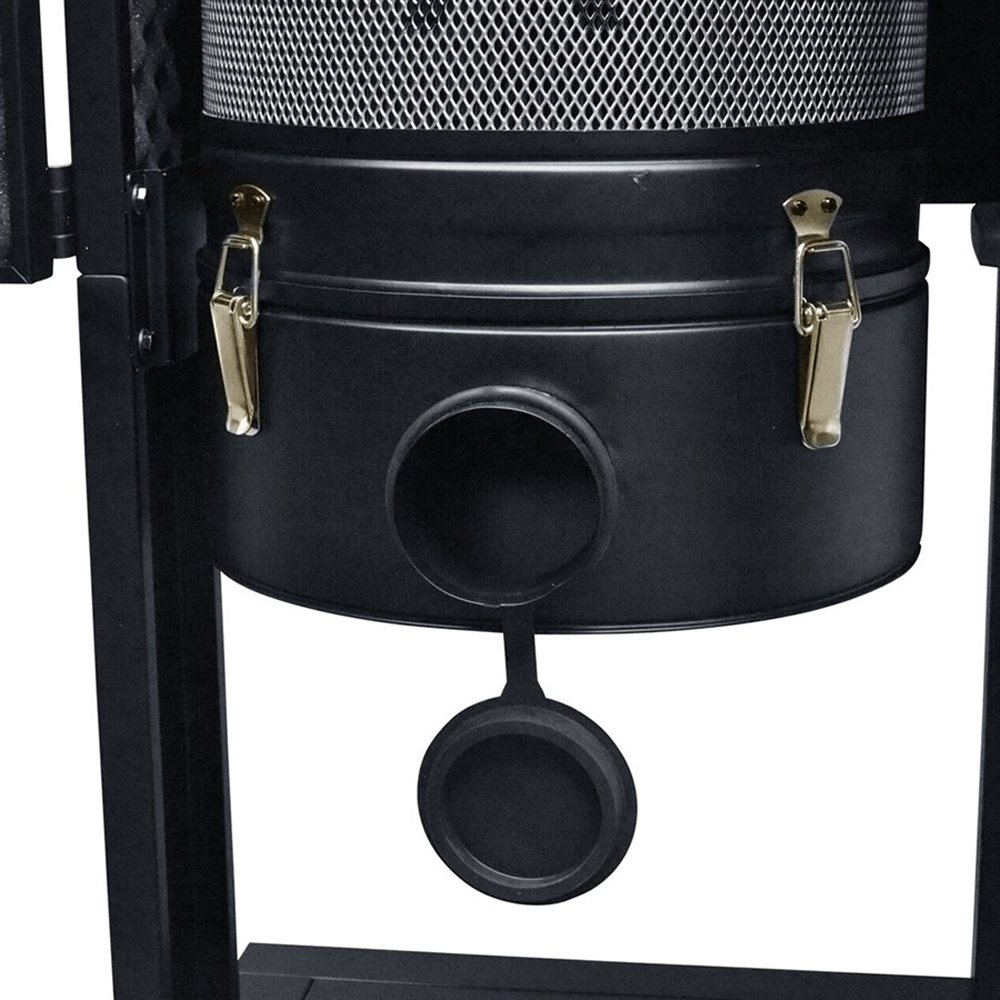

A 100mm (4”) hose port is located on the end of the HEPA filter to allow automated emptying of the very fine dust collected in the chamber. Connect the other end of the hose to the main inlet and run the cyclone which moves the fine dust into the collection drum.

When it comes to measuring airflow, there are may ways to do it. Laguna quote the traditional method, for comparison against other brands and a more realistic method which gives a ‘real world’ result. Visit the cycology page for more information.

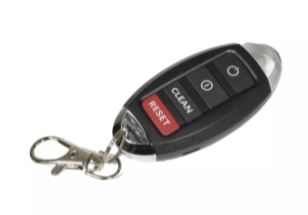

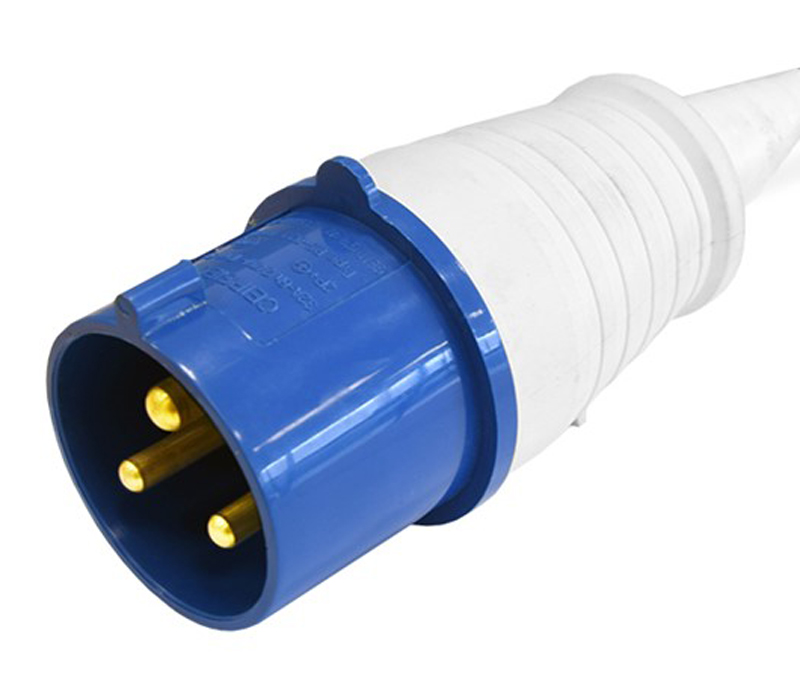

Supplied with remote start handset, 1 collection bag for main drum, 1.8m power cable (no plug). A 16 amp fixed electric supply is required to run this machine. We recommend using an industrial 16 amp 3 pin plug (round blue type).

Periodic cleaning of the HEPA filter is required using a compressed air supply. Air is blown from the outside of the canister, removing any particles attached to the inside of the filter material, bringing it back to full performance.

Specifications

• Part Number	PFLUX3
  Airflow (Traditional method)	3831 m3/hour (2253 cfm)
  Airflow (Realistic method)	2209 m3/hour (1299 cfm)
  Max. static pressure	285mm in water (11.2″)
  Canister filter type	HEPA 100% @ 1 micron
  Filtration efficiency	99.2% @ 0.4 micron
  Motor	2200w (3.0hp)
  Power supply	220-240v / 50Hz / 1phase
  Recommended breaker size (MCB)	30 Amps (Type D)
  Power cable (No plug)	1.8m (6ft) 3 wire
  Control panel	Anodized aluminium
  Hand held remote control	High frequency
  Inlet diameters	1 x 200mm or 3 x 100mm (1 x 8″ or 3 x 4″)
  Impeller fan type	390mm (15.5″) Steel radial fin (Balanced ISO 1940)
  Impeller fan speed	2800rpm

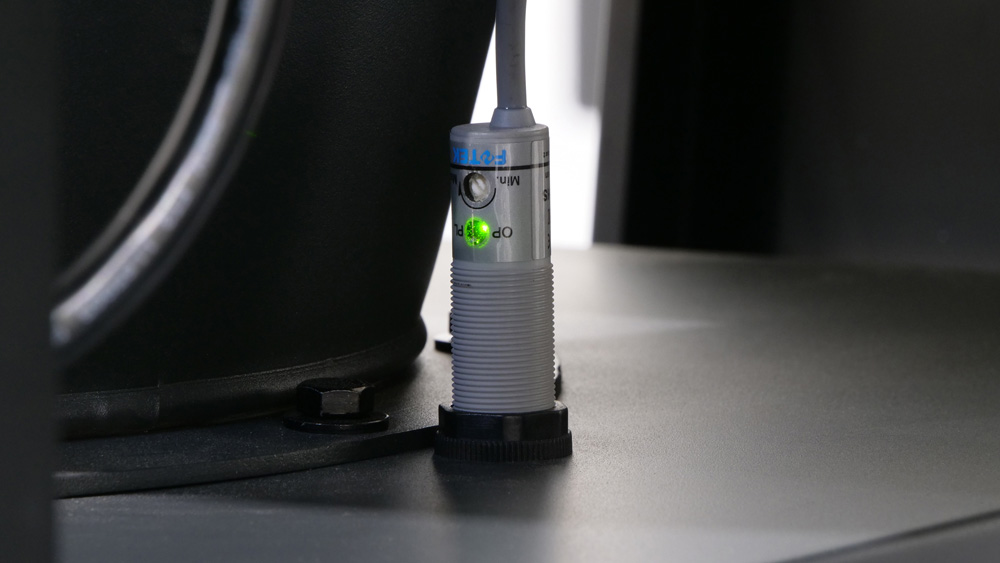

  Collection drum full signal	LED warning light
  Collection drum capacity	209 Litre octagonal drum
  Collection drum bag (layflat size)	960mm x 960mm (38″ x 38″)
  Collection bag hold down	Auto negative pressure
  Canister requires cleaning signal	LED warning light
  Filter canister cleaning	Use external compressed air supply
  Filter canister emptying	4″ hose connection – auto empty
  Decibel reading	76 dB(A) @ 3m
  Assembled dimensions (W x D x H)	1168mm x 686mm x 2032mm
  Shipping dimensions (W x D x H)	1250mm x 800mm x 1440mm
  Weight (Net/Ship)	160Kg / 210Kg
  Manufacturers warranty	1 Year



​

​

​
