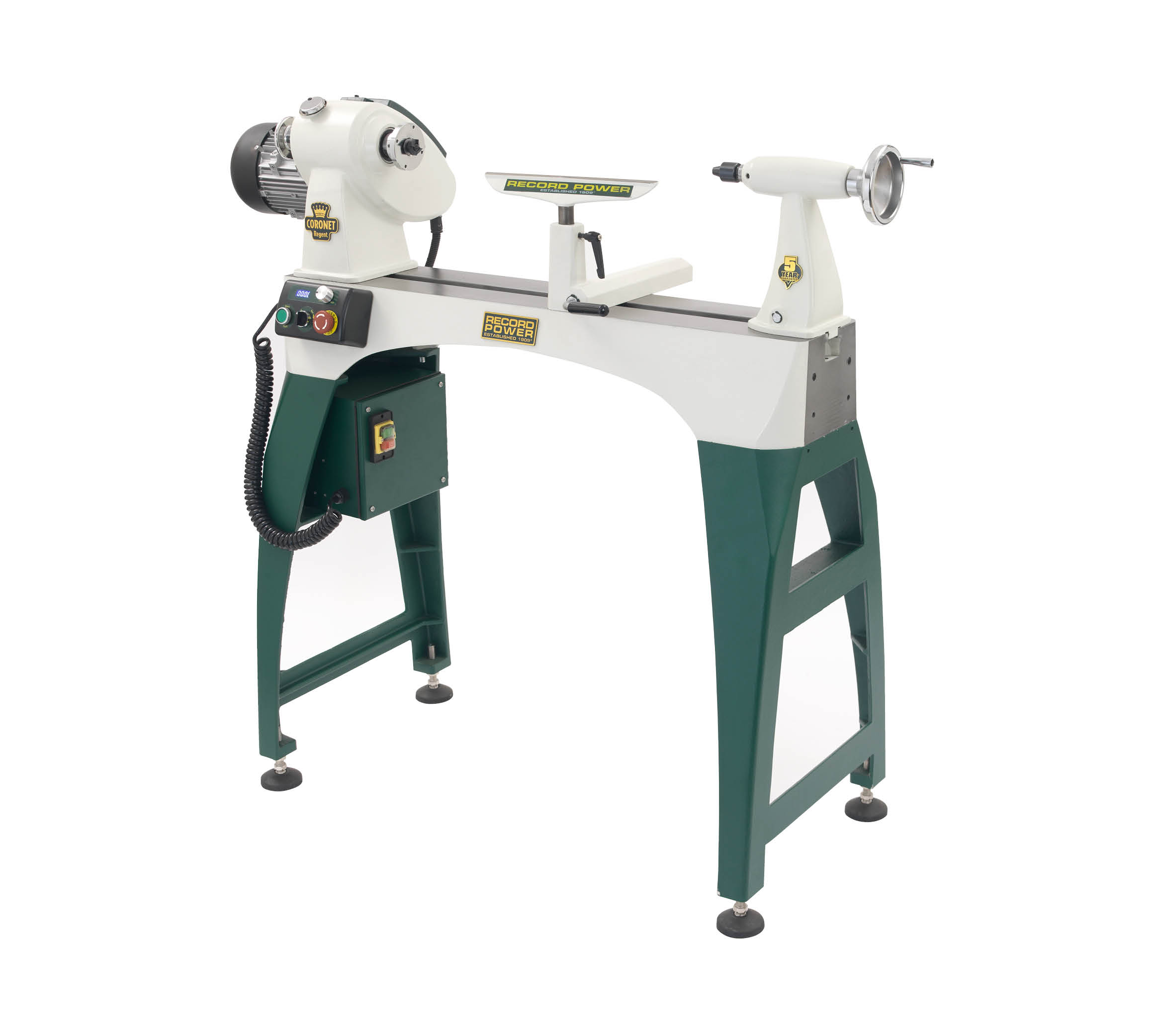

Coronet Regent Heavy Duty Cast Iron Electronic Variable Speed Lathe

£1,995.00

1 in stock (can be backordered)

SKU: Coronet Regent Categories: , , ,

Coronet Regent Heavy Duty Cast Iron Electronic Variable Speed Lathe

The Regent is the largest lathe in the exclusive range of Coronet lathes from Record Power and is ideal for the woodturner who regularly needs the power, stability and capacities necessary for very large scale work. It is supported by large and heavy integral cast iron legs to give ample protection from vibration while turning out of balance timbers. The overall heavy-duty construction of the machine, along with the finely engineered and machined components make this lathe a pleasure to use.

The Regent offers unrivalled value-for-money in its class without compromising capacity or features. It offers the benefits of electronic variable speed, a rotating and sliding headstock, reverse function and solid cast iron build throughout, yet at a cost more commonly associated with either much smaller or less well-specified lathes.

Rotating and Sliding Headstock

Unlike many cast bed lathes, the headstock of the Envoy can be rotated 360º, optimising access and also making it ideal for left-handed turners. A bearing system beneath the headstock allows it to be locked at 90º to the lathe bed and it can also be moved along the bed if required.

Rotating and Sliding Headstock

Self-Ejecting Tailstock

The self-ejecting tailstock allows for accessories to be easily and quickly removed without the need for a knockout bar. It accepts 2 Morse taper accessories, providing excellent strength and solidity.

Self-Ejecting Tailstock

Repositionable Control Panel

The control panel of the Envoy can be placed anywhere on the lathe and is secured from the rear with a strong magnet. Ideal for when turning large timbers which can limit access to the headstock-mounted fixed control panels found on many lathes.

Repositionable Control Panel

3-Step Pulley

A 3-step pulley is provided for maximum versatility. For most turning the middle pulley is ideal and provides good torque but if you need maximum torque for heavy cuts or low speed work, then the bottom pulley has immense torque capability and the top pulley gives access to the highest speeds. For ease of use the drive belt position can be seen through the inspection window of the headstock.

3-Step Pulley

Swivel Headstock:Swivel Headstock

Outboard Turning:Outboard Turning

Cast Iron Bed:Cast Iron Bed

Solid Steel Bed Bars:Solid Steel Bed Bars

Integral Legstand:Integral Legstand

Extendable Bed Length:Extendable Bed Length

Bench Mountable:Bench Mountable

Spindle Lock:Spindle Lock

Electronic Variable Speed:Electronic Variable Speed



Bowl Rest:Bowl Rest

Legstand:Legstand

Variable Speed Upgrade:Variable Speed Upgrade

Bed Extension:Bed Extension



Maximum bowl diameter:                      1000 mm (39”)

Maximum between centres:                  610 mm (24”)

Maximum swing over bed:                    460 mm (18”)

Spindle speeds:                                          250 – 3800 rpm

Motor input P1:                                          2 kW

Motor output P2:                                       1.5 kW

Thread:                                                         M33 x 3.5

Taper:                                                            2 Morse taper

Weight:                                                         145 kg

Size:                                                                L 1475 x D540 x H1235 mm

Additional information

Weight 145.00 kg
Dimensions 148 × 54 × 124 cm
