Laguna C Flux 3 Cyclone Dust Extractor

£2,899.00

Cyclones offer a more consistent and superior performance. They achieve this by effectively separating the heavy waste material from the fine dust, before the airflow passes through the fan. This allows the fan to operate more efficiently at a consistent speed.

The fine canister filters on cyclones also last much longer before requiring cleaning, helping to sustain a high airflow and reducing maintenance time.

SKU: C Flux 3 Categories: , ,

Description

Laguna C Flux 3 Cyclone Dust Extractor

FREE Shipping to Mainland UK!

The CFLUX range is a workhorse which represents a quantum leap for cyclones. With remote start as standard, they are suitable for either dedicated single machine use or as part of a small ducting system around the workshop.

The 2022 model has several upgrades which all improve the performance of the machine:

  • The size of the collection drum has increased by 40% – Less time spent emptying.

  • Additional filter cleaning paddle added – Deeper cleaning maintains maximum air flow.

  • Locks added to two of the castors – Increased stability.

The horizontal chute, on the CFLUX range, is designed to maximize airflow. All shapes and dimensions have been designed to optimize that performance. The fan is housed inside a single piece horizontal plenum which reduces airflow resistance.

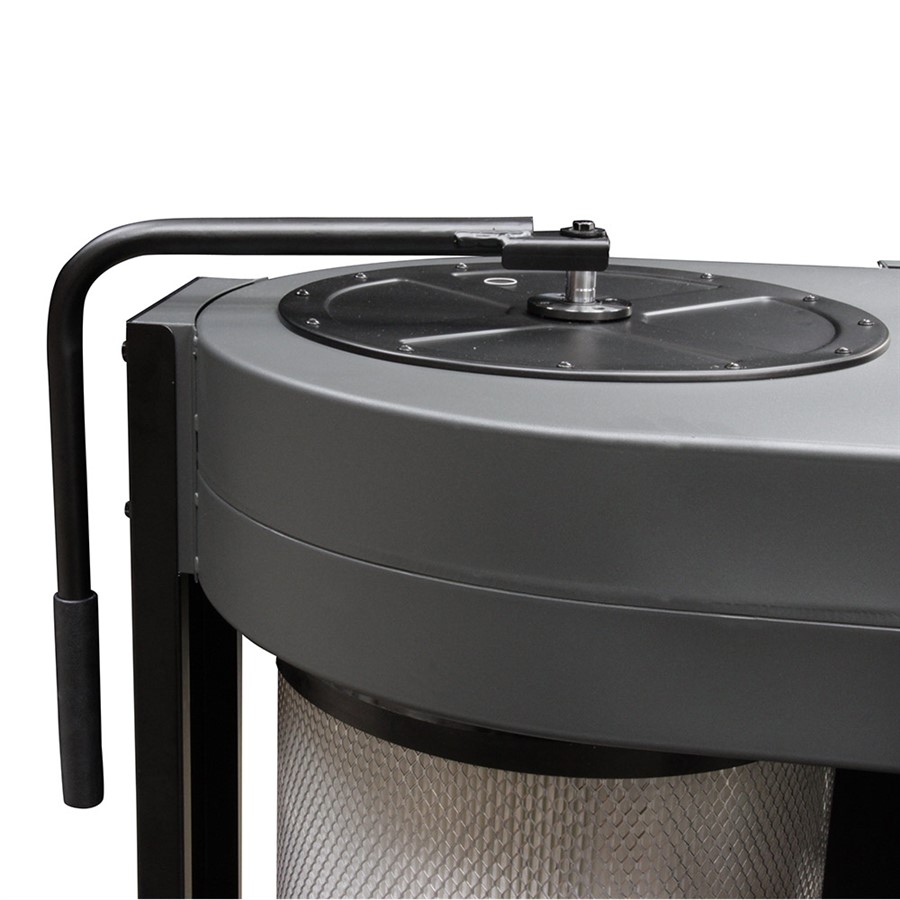

The CFLUX range is supplied as standard with a 1 micron canister filter, highly pleated to increase the surface area and maximise airflow. Canister cleaning is provided using the crank handle attached to internal paddles.

The Ingenious smart lift system quickly engages or disengages the collection drum using a simple lever action. The octagonal shaped drum is lifted off the floor and seals against the drum lid. With the drum in the lifted position, the CFLUX3 is fully portable on the four sturdy castors mounted to the frame. Once lowered, the drum sits on another set of castors and can quickly be rolled to wherever emptying is to be carried out.

When it comes to measuring airflow, there are may ways to do it. Laguna quote the traditional method, for comparison against other brands, as well as a more realistic method which gives a ‘real world’ result. Visit the cycology page for more information.

Supplied with remote start handset, 1 collection bag for main drum, 1 collection bag for filter dust, 1.8m power cable with fitted 32 amp industrial plug.

This Machine requires a 32amp supply and it’s recommended that a C Type breaker is used.

Specifications

Part Number

CFLUX3

Motor

2200w (3.0hp)

Power supply

220-240v / 50Hz / 1 phase

Recommended breaker size (MCB)

32 Amps (Type C)

Airflow (Traditional method)

3831 m3/hour (2253 cfm)

Airflow (Realistic method)

2209 m3/hr (1299 cfm)

Max. static pressure

285mm in water (11.2″)

Canister filter type

Polyester spun bond

Filter surface area

9.5m2  (109 sq/ft)

Filtration efficiency

99.7% @ 1 micron

Filter collection bag layflat size

660mm x 620mm (26″ x 24.5″)

Hand held remote control

High Frequency

Inlet diameters

1 x 200mm or 3 x 100mm (1 x 8″ or 3 x 4″)

Impeller fan type

390mm (15.5″) Steel radial fin

Impeller fan speed

2800rpm

Drum collection capacity

175 Litre octagonal drum

Collection bag hold down

Metal insert frame

Drum collection bag layflat size

960mm x 1200mm (38″ x 47″)

Filter Canister cleaning

Manual crank 270 degrees

Sound level

88 dB(A) @ 3m

Power cable

1.8m (6ft) 3 x 2.5mm wire

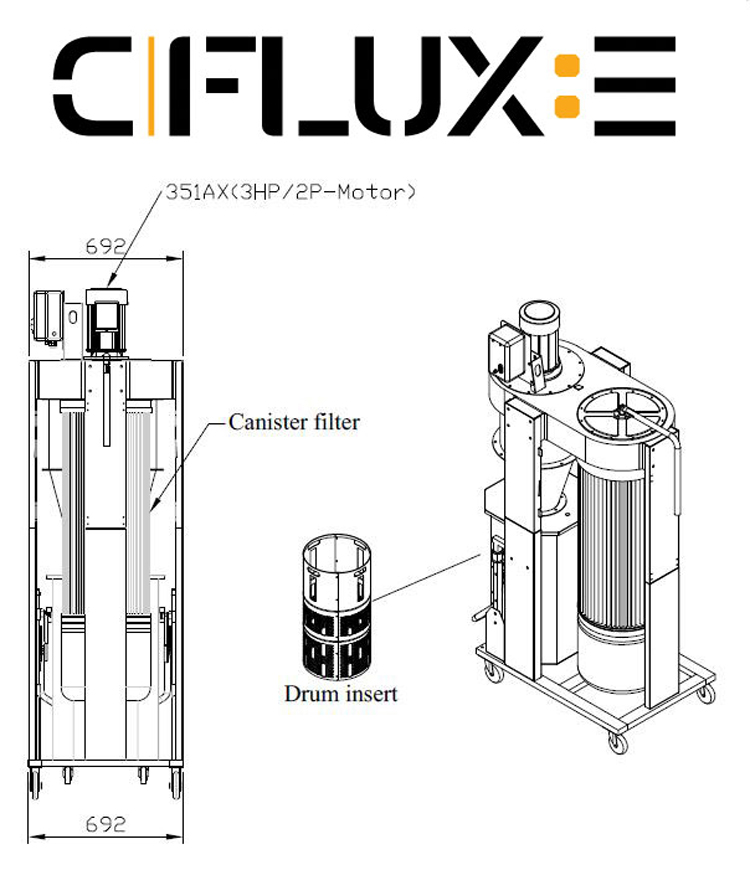

Assembled dimensions (W x D x H)

692mm x 1407mm x 2276mm

Shipping dimensions (W x D x H)

1270mm x 800mm x 1300mm

Weight (Net/Ship)

146Kg / 176Kg

Manufacturers warranty

1 Year

Assembly time

6 Hours (Needs 2 people)
