Laguna REVO 1216 Lathe Package

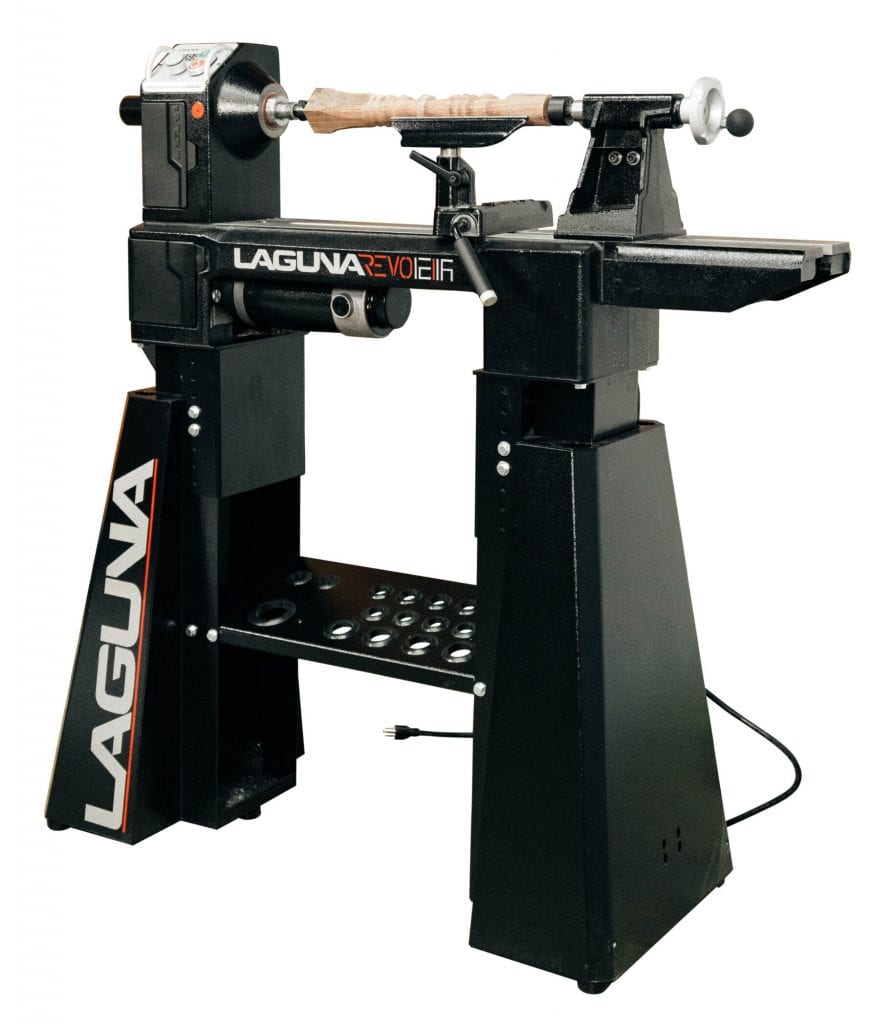

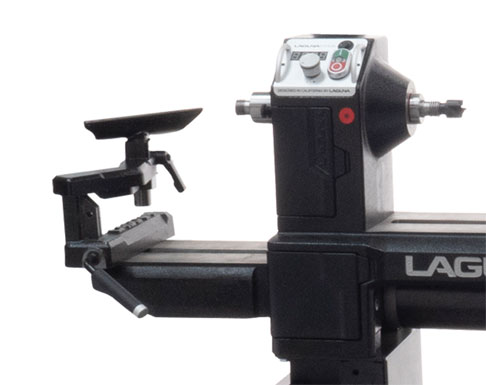

Package Deal Includes Heavy Duty Stand with incorporated Tool Rack and Extension Bed
Coming in March, Now available for Pre-Order
Free Delivery to Mainland UK!

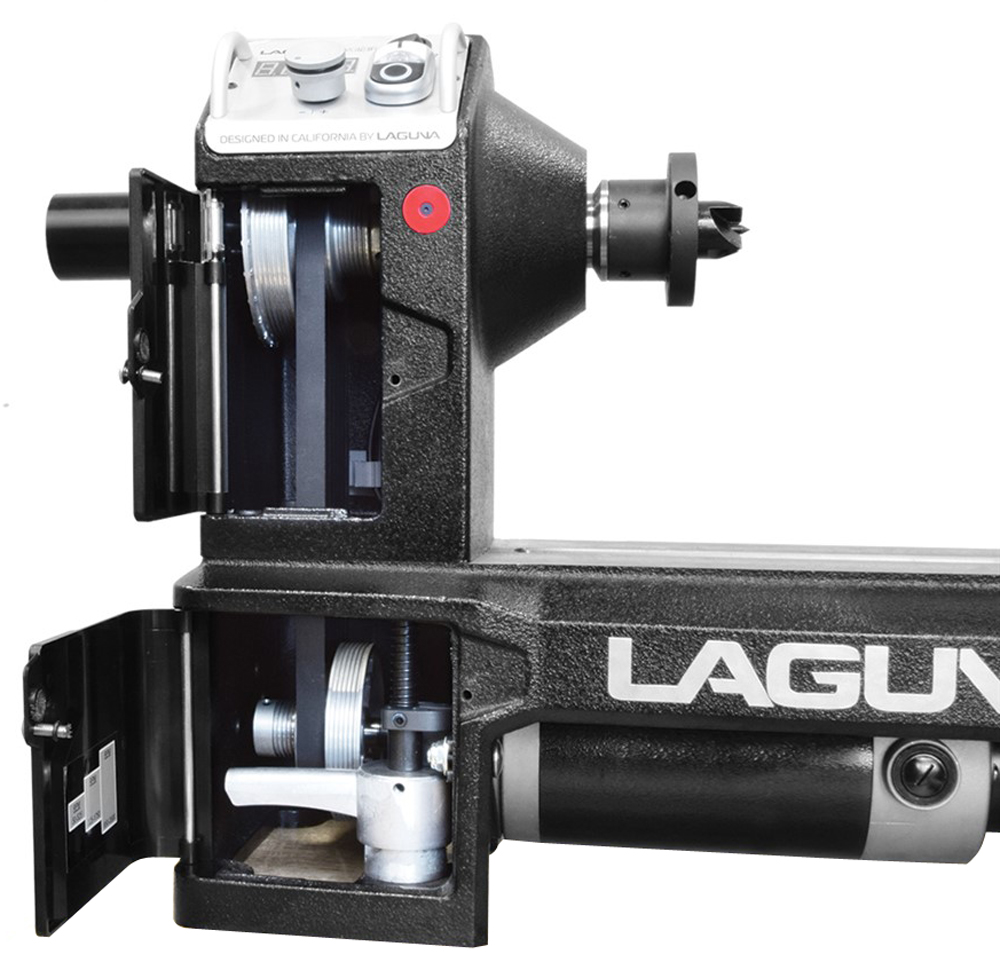

The definitive midi-lathe, Laguna’s REVO 12|16 encapsulates the prestige of Laguna in a small package. Featuring a Pulse Width Modulation system motor to maintain consistent torque at any speed, one step cam-action belt change with magnetic door housing, and a luxury banjo w/45º chamfered edge. Already launched to much acclaim and great reviews in the USA we are pleased to be introducing this superb machine later in 2019.
Specifications
Motor |
1HP DC Permanent Magnet Motor |
Controller |
Pulse Width Modulation (PWM) |
Electrical Requirements |
230v – 1Ph 50 Hz |
Speed Range High |
650 – 3500 RPM |
Speed Range Mid |
325 – 1750 RPM |
Speed Range Low |
50 – 525 RPM |
Distance Between Centers |
394 mm (15.5”) |
Swing Over Bed |
318 mm (12-1/2”) |
Swing Over Banjo |
241 mm (9-1/2”) |
Max. Outboard Swing |
406mm (16”) |
Spindle Bore |
9.5mm (3/8”) |
Spindle Taper |
MT2 |

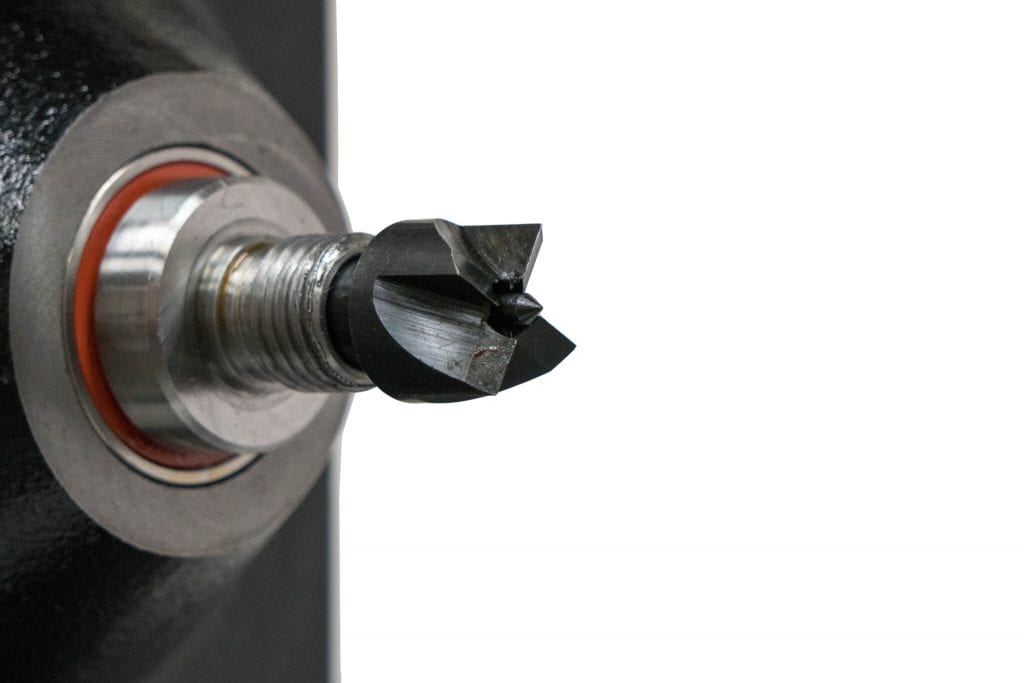

Spindle Thread |
M33 x 3.5 (both ends) |
Front Bearing |
6006LLU |
Rear Bearing |
6006LLU |
Indexing |
24 positions w/lock |
Belt |
Drive belt Poly-V Belt 6 Grooves |

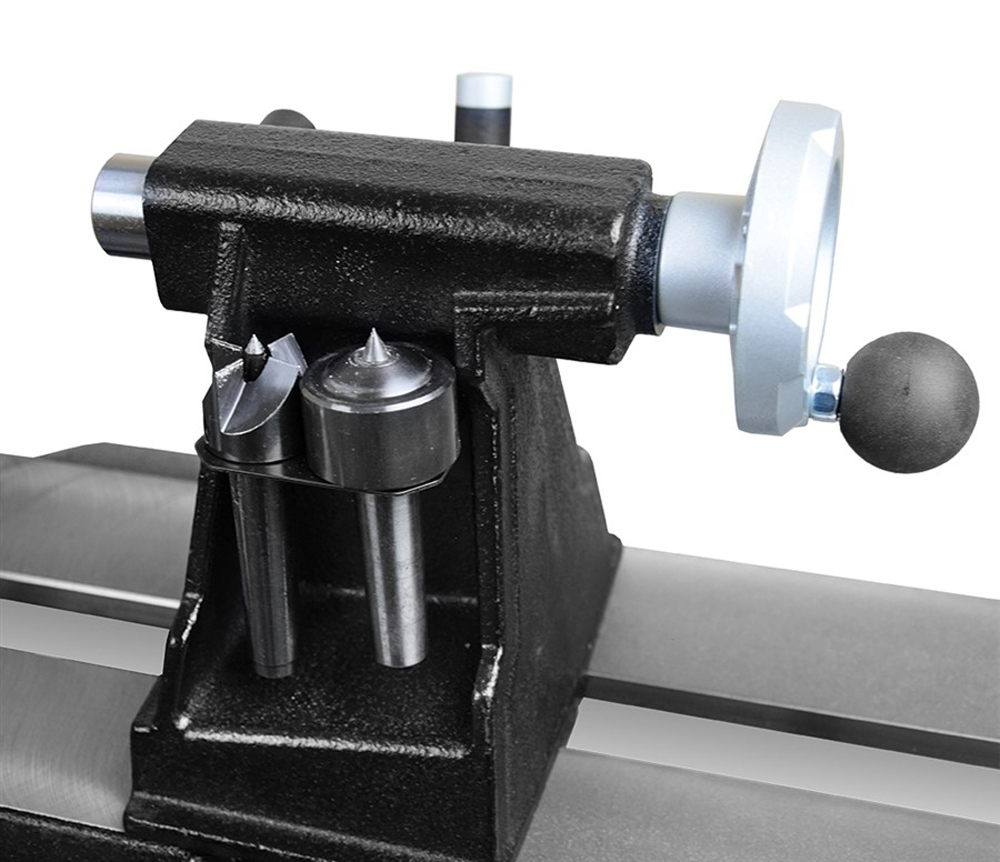

Tail stock quill travel |
63.5 mm (2-1/2”) |
Tail stock taper |
MT2 |
Bed Length |
746.8 mm (29.4”) |
Tool Rest Length |
152.4 mm (6″) |
Tool Rest Post Dia. |
25.4mm (1”) |
Faceplate Dia. |
76.2 mm (3”) |
Certification |
CE |
Floor to bed height |
170 mm (6.7”) no pads |
Floor to Spindle Center |
328.75 (13”) no pads |
Overall Size L x W x H |
746.8 mm x 226 mm x 442 mm (29.4” x 8.9” x 17.4”) |
Shipping Dimensions L x W x H |
35.8” x 14.6” x 20.5” |
Net Weight |
53.5 Kg |
Shipping Weight |
56.7 Kg |
Reviews
There are no reviews yet.
